特點：
Case: Black Noryl
Pin: Tin-Plated Copper
Wave Solderable & Washable

規(guī)格:

type	unit	XCMT25A1506PX	XCMT25A1512PX
◆Min. Sound Output at 10cm	dB	80	80
Rated Voltage	V	6	12
Operating Voltage	V	3~7	8~14
Resonant Frequency	Hz	1000~1500	1000~1500
◆Max. Current Consumption	mA	70	55
Coil Resistance	Ohm	36±5	120±12
◇Coil Impedance	Ohm	48	155
Operating Temperature	℃	-20~+70	-20~+70
Storage Temperature	℃	-30~+80	-30~+80
Weight	g	10	10

◆Value applying at (rated voltage,1000Hz, 1/2 duty square wave)
◇Value applying at (1000Hz,sine wave,measuring current 60μA)

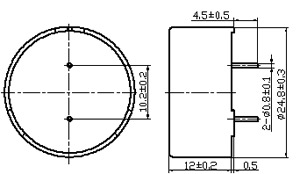

尺寸：（單位：mm）

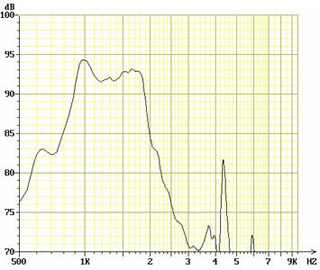

錄放幅頻響應(yīng)：
